CANcliq: the contactless CAN bus reader

The CANcliQ is standard supplied with all Squarell vehicle data interfaces and is not sold separately.

For privacy reasons YouTube needs your permission to be loaded. For more details, please see our Privacy policy.
I Accept

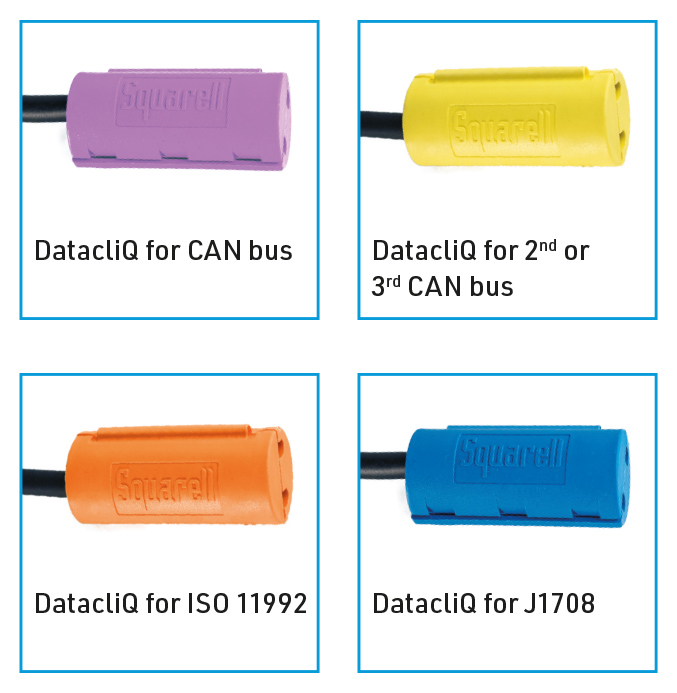

Take a look at the DatacliQ for reading SAE J1708 and ISO 11992 bus signals.

It used to be difficult to read data safe and reliable from a vehicle data network. After finding the right CAN bus wires you had to find a good place to connect, strip the wires and solder or crimp to make a physical connection to the CAN bus.

In response to this, we introduced CANcliQ: the contactless CAN bus reader. The CANcliQ reads vehicle signals without making a wire to wire connection. This technology guarantees that no intrusive signals are sent to the vehicle CAN bus. This eliminates liability matters, warranty issues or possible wrong connections. Since its introduction in 2009 CANcliQ has proven itself as a reliable and safe solution.

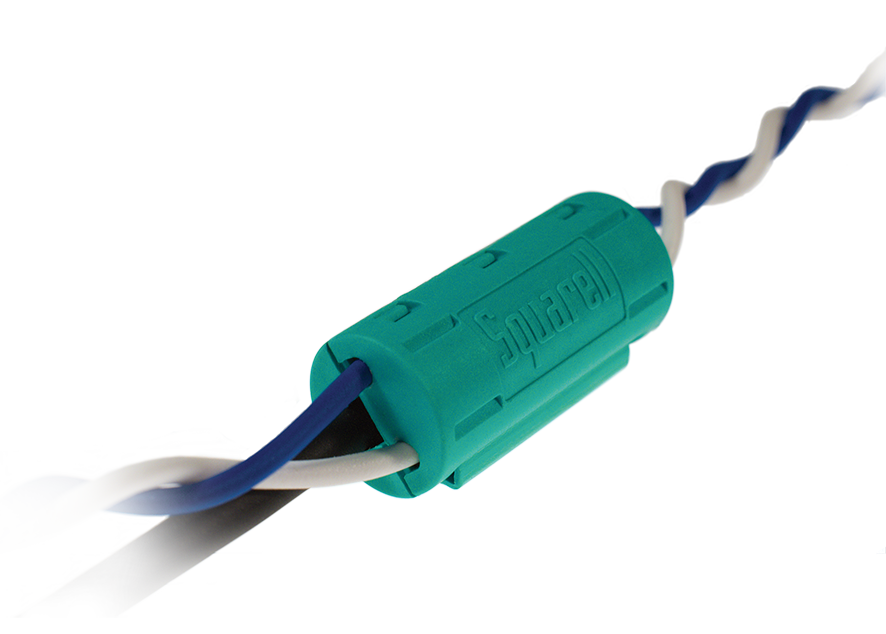

CANcliQ
CANcliQ opened
CANcliQ cables

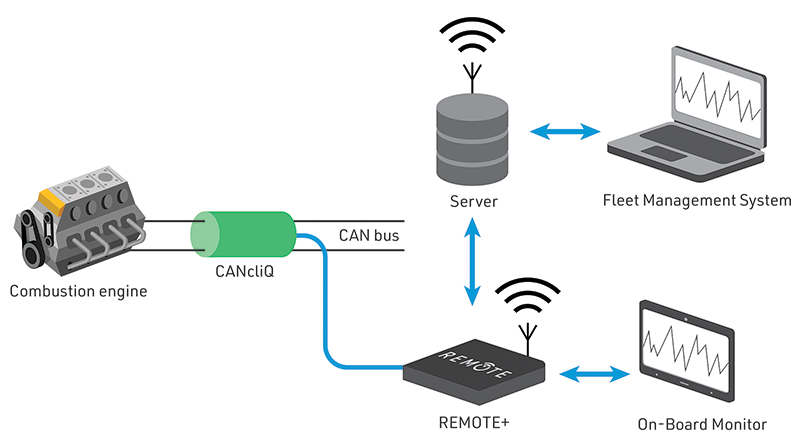

How does it work

  • Find the proper CAN bus wires

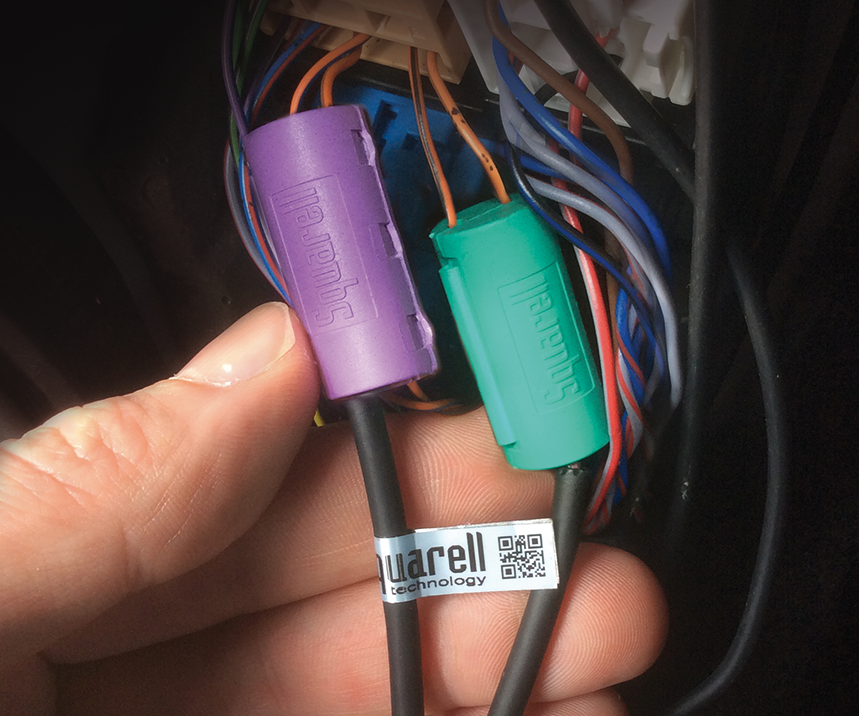

  • CANcliQ is placed over the CAN bus wires
  • Close permanently with one click
  • Connects to the CAN-diode port of Squarell interface
  • Reads through wire isolation

Benefits

  • No direct CAN bus connection

  • One cable fits all vehicles
  • 100% non-intrusive technology

  • Safe and reliable reading of CAN bus data

  • No soldering, wire cutting or crimping
  • No physical wire-to-wire connections
  • Isolation of vehicle wires stays intact
  • Quick installation
  • No warranty and liability issues

Patent licensing

ATTENTION!

We like to inform you that Squarell Technology has entered into a formal license agreement with Masternaut S.A.S. concerning all patents originating from the patent applications WO 2007/042651 sharing the priority documents FR20050010343 and FR20060000321, including but not limited to the United States patent US 8,548,099, as granted on 1 October 2013, and the national parts of the European patent published under number EP 1.941.656, as granted on 4 August 2010, and titled “Device for reading information on a digital bus without a wire connection to the network”.

This means that we have certainty that all our CANcliQ and DatacliQ products have full freedom to operate, allowing our customers to freely buy, sell and use our products without any risk with respect to mentioned intellectual property rights.

The agreement concerns the right of production, marketing, sale and use of our products worldwide and is retroactively effective for all Squarell products.

If you have any questions concerning this topic, please feel free to contact us.

CANcliQ's "CliQ" technology

Specifications

DESCRIPTION VALUE
Dimensions (l × w × h) 30.8 × 13.8 × 13.8 mm
Supported protocols CAN bus, FMS, J1939, ISO 11992
Wire diameters 0.8 mm to 2.0 mm
Baud rates 10 kbaud – 1000 kbaud
Housing Robust polypropylene housing, IP67
