SOLID+
The Complete Vehicle Intelligence Gateway
The Missing Link Between Your Vehicle and Your Application
The SOLID+ is Squarell’s compact Vehicle Intelligence interface, designed for organisations that already have an existing telematics platform but require access to high-quality harmonised vehicle data.
Instead of replacing an existing fleet management system, the SOLID+ enriches it with reliable vehicle intelligence from virtually every vehicle brand.
Whether your fleet consists of trucks, trailers, emergency vehicles, military vehicles or specialist equipment, the SOLID+ provides the reliable vehicle intelligence needed to improve fleet performance.
Why choose the SOLID+?
Built for Vehicle Intelligence.
Most telematics devices start with GPS.
The SOLID+ starts with vehicle data.
Using Squarell’s extensive OEM protocol knowledge and non-intrusive CANcliQ technology, the SOLID+ accesses information directly from multiple vehicle networks instead of relying solely on the limited information available through the standard FMS connector.
The result is richer data, better diagnostics and significantly more operational insight.
Build for Connected Fleets
Many fleet operators already use an existing telematics system.
The SOLID+ allows these systems to receive harmonised vehicle intelligence without replacing the existing hardware or software.
Vehicle data is transmitted via Bluetooth or RS232, allowing seamless integration with third-party telematics platforms, tablets and embedded applications.
Preserve your existing investment
Instead of replacing an installed telematics solution, the SOLID+ adds advanced Vehicle Intelligence.
Existing applications continue to operate exactly as before while benefiting from hundreds of additional harmonised vehicle parameters.
More than 450 Harmonised Vehicle Parameters
The SOLID+ generates more than 450 harmonised vehicle parameters, organised into specialised Parameter Groups supporting solutions such as:
- Driver Performance
- Vehicle Performance
- Operational Management
- Uptime
- Compliance
- Trailer Intelligence
Built for Every Vehicle
Supported applications include:
- Heavy trucks
- Trailers
- Light commercial vehicles
- Electric vehicles
- Emergency vehicles
- Military vehicles
- Refuse collection vehicles
- Construction equipment
- Special purpose vehicles
“Applications no longer need to understand OEM-specific CAN protocols.
Squarell already has.”
“The SOLID+ communicates directly with virtually every important vehicle network.”
Supported Vehicle Networks
The SOLID+ communicates directly with virtually every important vehicle network.
Supported Vehicle Networks:
- CAN (up to 4 channels)
- J1708
- K-line
- OBD
- Tachograph
- ISO 11992 Trailer CAN
Smart Data Processing
Your application receives information instead of raw vehicle data.
Inside the SOLID+, Squarell’s DCF software:
- interprets OEM protocols
- harmonises vehicle data
- generates Parameter Groups
- filters unnecessary traffic
- reduces communication bandwidth
- prepares information for fleet applications
“Unlike many telematics devices, the SOLID+ does not require a brand-specific FMS interface.”
“Vehicle Intelligence starts inside the device.”
Designed for Automotive Reliability
Every SOLID+ is designed specifically for professional automotive applications.
Features include:
- Automotive-grade electronics
- ISO 7637-2 compliant power supply
- CE, E4, UKCA and RoHS certification
- -40°C to +85°C operating temperature
- UL94 V-0 flame-retardant enclosure
- Designed and manufactured in the Netherlands
Ready for Device Management
Every SOLID+ becomes part of the Squarell Device Management ecosystem.
Using ExpertView you can:
- monitor deployed devices
- activate Parameter Groups
- configure outputs
- upload new firmware
- manage subscriptions
- distribute DCF updates
- diagnose devices remotely
Configuration changes, Parameter Group subscriptions and firmware updates can all be performed remotely without removing the device from the vehicle.

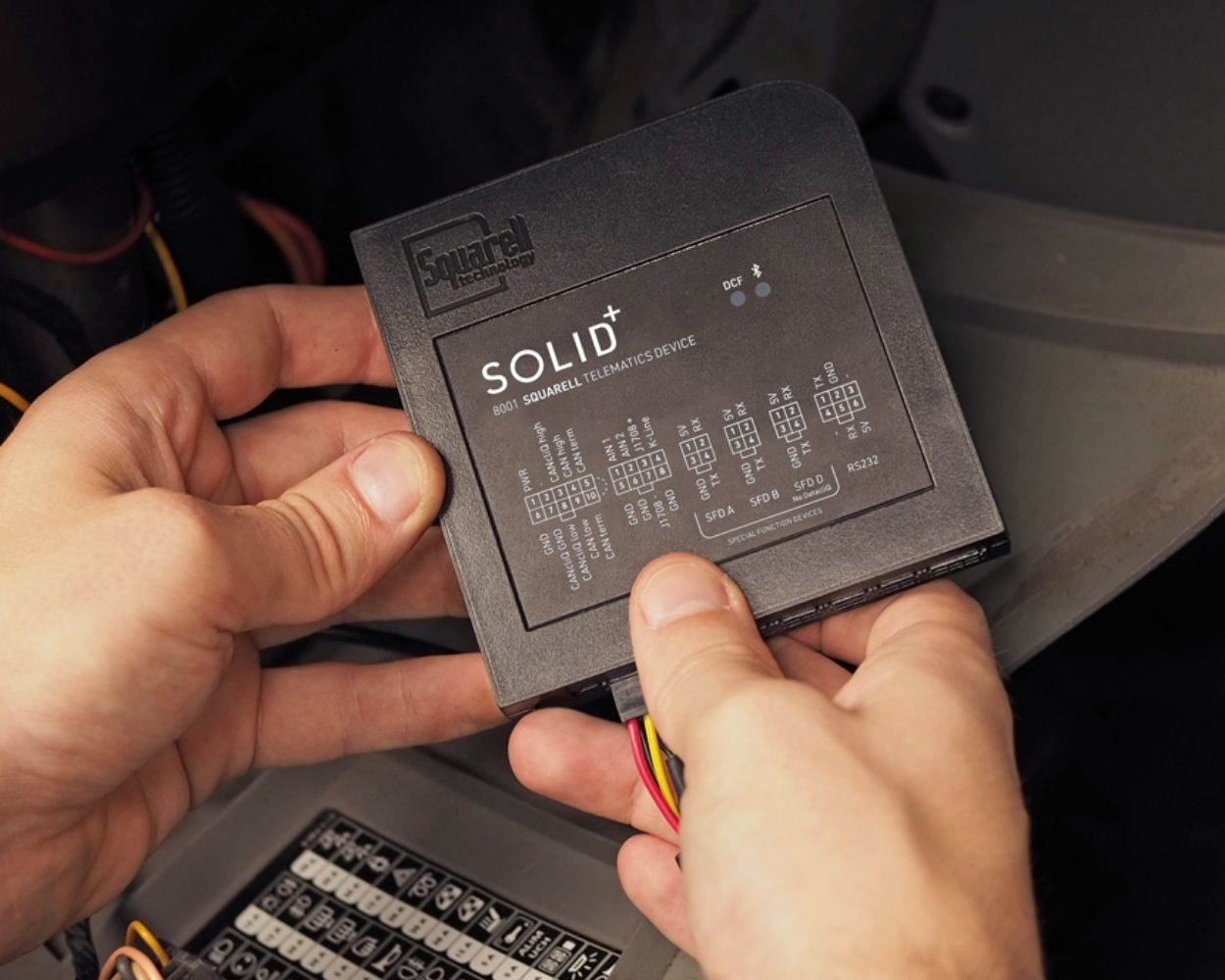

Installation made simple
Installation time is often more expensive than the hardware itself.
The SOLID+ has therefore been designed around plug-and-play cable assemblies, automatic vehicle recognition and remote configuration through ExpertView.
Because the SOLID+ communicates through Bluetooth or RS232, no modifications to the customer’s existing telematics platform are required.
Combined with Squarell CANcliQ technology, installation becomes faster, safer and significantly easier.
One Box Solution
The SOLID+ Gateway and your IVMS make a great team; If you decide to switch to a one-box solution later on, the REMOTE+ fits the SOLID+ cable set perfectly.
Accessories
- CANcliQ NG
- DataCliQ
- Driver Awareness Panel
- Special Function Devices
CAN FD Ready
Vehicle networks are evolving from Classical CAN towards CAN FD.
The Squarell Dual CAN FD Interface extends the [SOLID+ / REMOTE+ / ENVIRON+] with two independent CAN FD interfaces supporting data rates up to 8 Mbit/s and messages with up to 64 bytes of data.
Relevant CAN FD messages are filtered and processed by the interface before the selected information is transferred through the Squarell SFD connection.
New vehicle network technology without replacing your Squarell IVMS.
Why Squarell?
The SOLID+ is not simply another IVMS.
It is part of a complete Vehicle Intelligence ecosystem combining:
- Fleet Connectivity
- Parameter Groups
- ExpertView Device Management
- Solution-oriented Vehicle Intelligence
This enables fleet operators and telematics providers to focus on creating value instead of integrating vehicle protocols.
